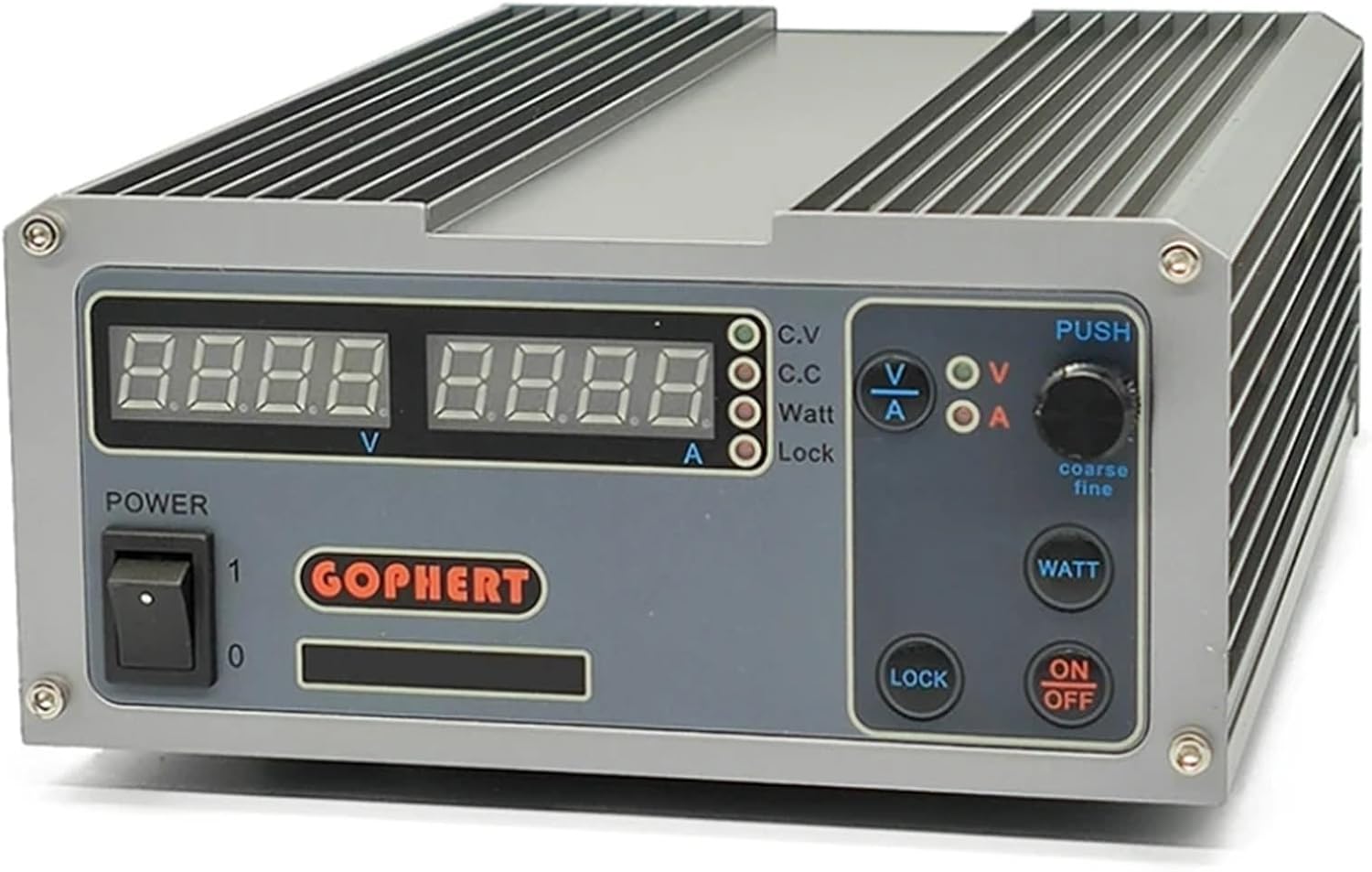

CPS1640 CPS-1640 Compact Digital Switching Power Supply Output 0-16V 0-40A Adjustable Measurable Power(US Plug,110V)

Multimeters & AnalyzersCPS1640 CPS-1640 Compact Digital Switching Power Supply Output 0-16V 0-40A Adjustable Measurable PowerFeatures:Microprocessor (MCU) Control, High Cost PerformanceHigh power density, small size and beautiful appearanceFull metal housing for extremely low electromagnetic interferenceUse encoder to adjust voltage and current, set fast and accurateFour-digit voltmeter and ammeter, set and display accurate to two decimal placesActive Power Factor Correction (Active PFC) with a power factor of >97% at rated output;High efficiency, efficiency up to 90%Low ripple noise, ripple peak-to-peak value below 30mVOutput ON/OFF switchIntelligent protection: output short circuit protection, tracking overvoltage protection (Tracking OVP), tracking overcurrent protection (Tracking OCP), over temperature protection (OTP)Specifications:ModelCPS1640CPS1660CPS3630CPS6017CPS6517CPS8412Operating Frequency Range45 65HZ45 65HZ45 - 65HZ45 65HZ45 65HZ45 65HZOutput Voltage Range0 16V0 16V0 - 36V0 60V0 65V0 84VOutput Current Range0 40A0 60A0 - 30A0 17A0 17A0 12AEfficiency (220Vac, Full Load)89%89%88%89%89%87%Full Load Input Current (220Vac)3.35A3.35A5.7A5.1A5.1A5.1ANo-load Input Current (220Vac)180mA180mA200mA180mA180mA180mAVoltmeter Accuracy0.3% + 1 digits0.3% + 1 digits0.3% + 1 digit0.3% + 1 digits0.3% + 1 digits0.3%+1 digitAmmeter Accuracy0.3% + 2 digit0.3% + 2 digit0.3% + 2 digits0.3% + 2 digits0.3% + 2 digit0.3%+2digitConstant Pressure StateLoad Regulation Rate (0-100)30mV30mV30mV30mV30mV30mVInput Voltage Regulation Rate (198-264Vac)10mV10mV10mV10mV10mV10mVRipple Noise (Peak-Peak)30mV30mV30mV30mV30mV30mVRipple Noise (r.m.s)3mV3mV3mV3mV3mV3mVSetting Accuracy0.3% + 10mV0.3% + 10mV0.3% + 10mV0.3% + 10mV0.3% + 10mV0.3%+ 10mVTransient Response Time (50%-100% rated Load)1.0ms1.0ms1.0ms1.0ms1.0ms1.0msConstant Current StateLoad Regulation Rate (90%-10% Rated Voltage)50mA50mA50mA50mA50mA50mAInput Voltage Regulation Rate (198-264Vac)20mA20mA20mA20mA20mA20mARipple Current Noise (Peak-to-Peak)30mAp-p30mAp-p50mAp-p30mAp-p30mAp-p30mAp-pSetting Accuracy0.3% + 20mA0.3% + 20mA0.3% + 20mA0.3% + 20mA0.3% + 20mA0.3%+20mADimensions (Width × Height × Depth)180 × 80 × 208mm180 × 80 × 208mm180 × 80 × 208mm180 × 80 × 208mm180 × 80 × 208mm180 × 80 × 208mmNet Weight2.5KG2.5KG2.5KG2.5KG2.5KG2.5KG==========Output Power : >500Wis_customized : YesOutput Current : 0-16AModel Number : CPS1640Output Frequency : 45-65HZOutput Type : SINGLE
